Product Description:

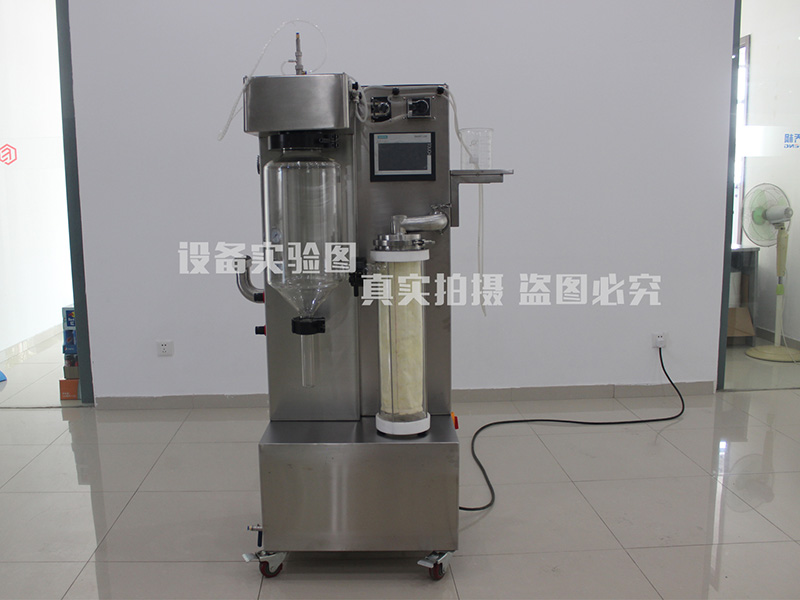

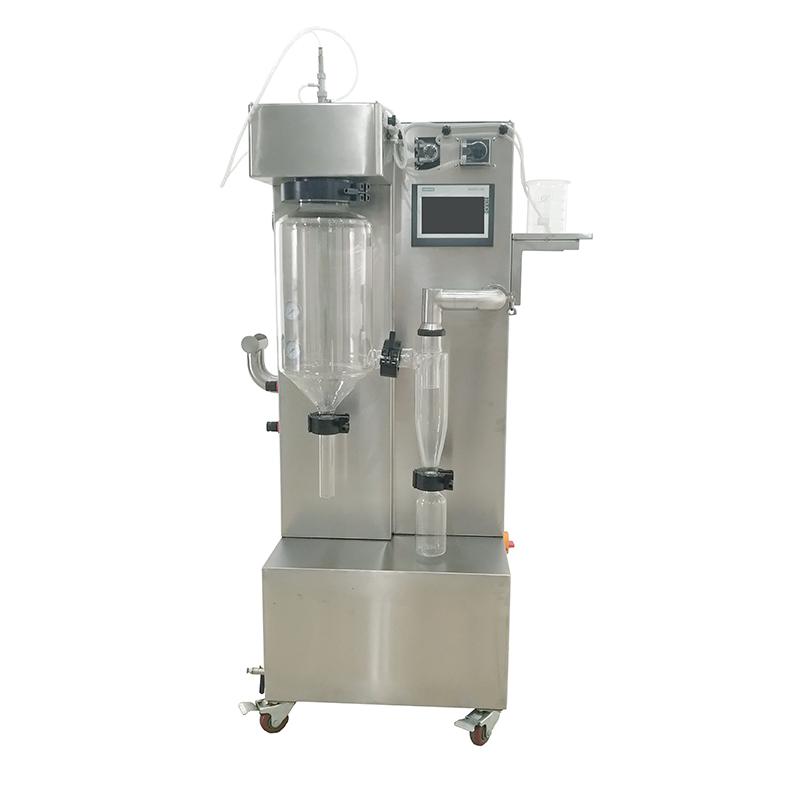

Experimental spray dryer (small spray dryer)It is mainly suitable for producing micro-particle powder in universities, research institutes and laboratories of food, pharmaceutical and chemical enterprises. It is widely applicable to all solutions such as emulsion and suspension.
It is suitable for drying of heat sensitive substances, such as biological products, biological pesticides, enzyme preparations, etc. Because the material is only sprayed into a fog when the high temperature and instantaneous heating, so these active materials still maintain its active ingredients after drying.
Multiple application areas:
Beverages, spices and colors, milk, egg products, plant and vegetable extracts, pharmaceutically synthesized thermosensitive plastics, polymers and resins, aromatics, blood products, ceramics and superconducting biochemical products, dye soaps and detergents, food, adhesives, oxides, bone meal and tooth powder, etc.

Main features:

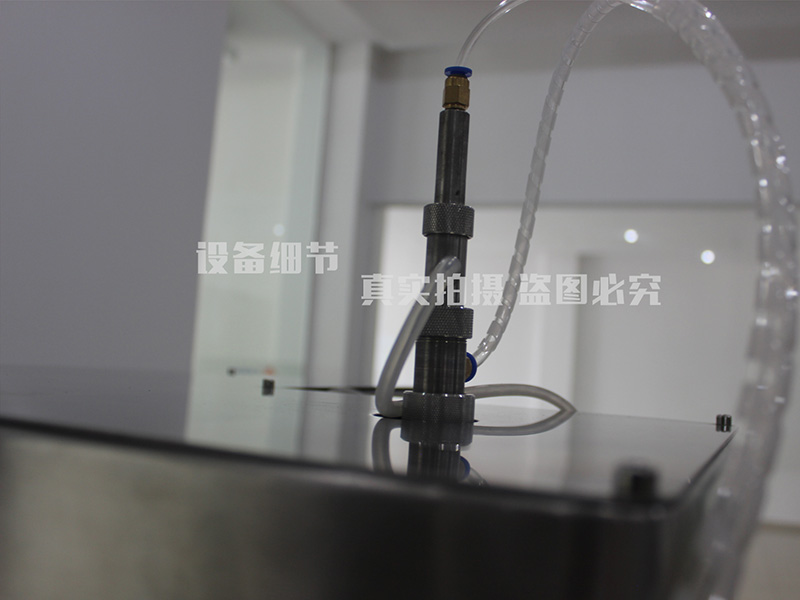

1. Choose the concentric coaxial atomizer designed by Jo Feng, and the nozzle aperture can be customized.
2. Choose wear resistant and corrosion resistant 16# silicone tube to meet the transportation needs of most heat sensitive materials.

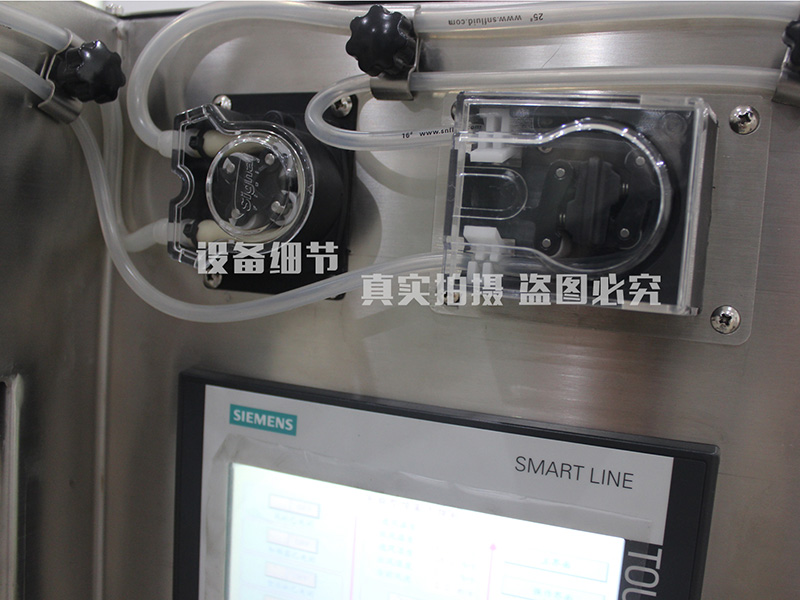

3. The conveying device is an inline peristaltic pump with precise speed control and safer unidirectional rotation.
4. A high borosilicate glass drying component with good transmittance and acid and alkali resistance.
5. The clamp of the fixed component is made of high quality aluminum alloy material, and is durable and without dead angle.
6. Cyclone separator and bag dust remover can be switched to use, and different particle sizes of materials can be screened and collected.
7. The imported oil-free air compressor imported from Taiwan has the advantages of low pollution, low noise and sustainable work.
8, adopt high-precision PID temperature control technology, temperature control accuracy range 1 degrees, electric heating heat source stability and more environmental protection.
9. intelligent human-machine interaction interface, simple operation, support for Chinese and English handover.
10. Dry powder after drying, its granularity is more uniform, more than 95% of the dry powder in the same granularity range.
11. For viscous materials, a nozzle cleaner (through needle) is provided. When the nozzle is blocked, it will be removed automatically, and the frequency of the through needle can be adjusted automatically.
12. stainless steel drying room can be cleaned by tower wall.
12. accept customization (for example, fully equipped with imported accessories, sandblasting, design according to laboratory environment, etc.)

Equipment parameters:

Note:For more evaporation equipment, please inquire online or call.

Optional:
1, can carry one or two pumps to carry out the operation. When a plurality of conveying pumps work at the same time, the mixing chamber can be matched to mix the materials directly or directly.
2, optional multi power induced draft fan, intelligent frequency modulation;
3, you can use universal switch, a key to boot.
4. Real-time humidity detection device, intuitively reflect the humidity changes in the drying process; gas temperature and humidity sampling point set in the flue gas system and dust recovery device, gas directly conveyed to the probe sampling analysis, can automatically carry out on-line sampling.
5. Imported brand electronic control system (such as Siemens) can be selected, which has strong control ability and supports online upgrade of program.
6. Single bag filter is a customized product with high toughness skeleton, high compression resistance and high durability.
7, optional Shanghai Jo Feng special dust removal system, greatly improving the recovery rate.
8. Rotor flowmeter can be selected.
9, other gas interfaces (such as nitrogen) can be reserved.
